Features:

It totally solves problems happened in using. It is suitable for public weighing station, chemical enterprise, harbor and food frozen industry with high requirement on anti-corrosion aspect.

AC/DC (built-in storage battery) instrument with double purpose;

Four points liner correction;

Intelligent distinguishing of battery quantity;

Automatic power-off protection function;

Realize 10 times accuracy improvement;

Tare weight storage;

Storage of all records and statistical statement;

Daily statement and monthly statement;

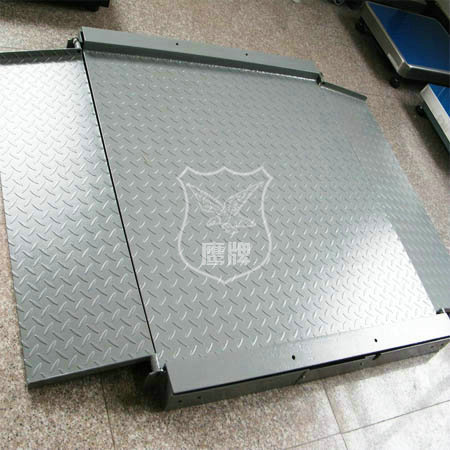

Basic configuration of single layer electronic wagon balance:

Steel structure scale body

Weighing instrument

Weighing sensor

Electronic junction box

Top and bottom sphere-wris or weighing foot

Road approach (optional)

Printer (optional)

Specification:
Weighing amount: 1T/0.2kg  2T/0.5kg  3T/0.5kg  5T/1kg  10T/2kg

Platform size: 1m*1m 1.2m*1.2m 1.2m*1.5m 1.5m*1.5m 1.5m*2m   2m*2m  1.5m*3m

1 part: 1 + 1 + 1 + high precision sensor 4 + junction box
2 scale body size: 0.8X0.8, 1.0X1.0, 1.2X1.2, 1.2X1.5, 1.5X1.5, 1.5X2.0,
3 weighing accuracy: 1T/200g, 2T/500g, 3T/500g, 5T/1kg.
Electronic weighbridge weighing scale body, four: by the sensor, junction box, display (instrument).
Table size: 1 to the customer can be determined, non-standard scales can be customized according to customer needs.
The following table size loadometer is usually 1.0*1.0m, 1.0*1.2m,
The table size is usually 1.2*1.2m is loadometer, 1.2*1.5m, 1.5*1.5m,
2 (MESA) panel: stainless steel flat plate, steel plate, the thickness of the panel is usually 6MM
3 scale frame: channel steel, square tube
4 display (instrument): Standard XK-3190-A12 professional loadometer weighing instrument.
5. Sensor: each loadometer has four pieces (sets), sensor, loadometer four corner every corner of the planet, 3T loadometer 2T sensor, 2T loadometer 1t sensor, 1t loadometer 1t or 0.5T (a bit too small). 5T loadometer 2T and 3T (smaller) sensor. 1t sensor using 0.5T too small: four each sensor 0.5T, then four for 2T is far greater than the loadometer weighing range, however, if used in weighing objects do not pay attention to, where the balance angle of pressure is too fast, then only 0.5T sensor under pressure, the sensor damage is very large, and weighing accuracy will also greatly affected, so if each angle sensor capacity is 1t so its safety factor will be very high.
Single layer structure: 4 high precision sensor, stainless steel waterproof junction box, intelligent display instrument. Scales to A36 structural steel and C type steel skeleton based, sturdy and durable, with 4 groups which can be adjustable support leg has the advantages of beautiful appearance, firm structure, exquisite workmanship, innovative patent of high rigidity and high strength design, innovation top appearance patent design. Suitable for lifting materials weighing, weighing and manual handling forklift shovel on weighing.
